Hawk-Eye™ Remote Sensing System

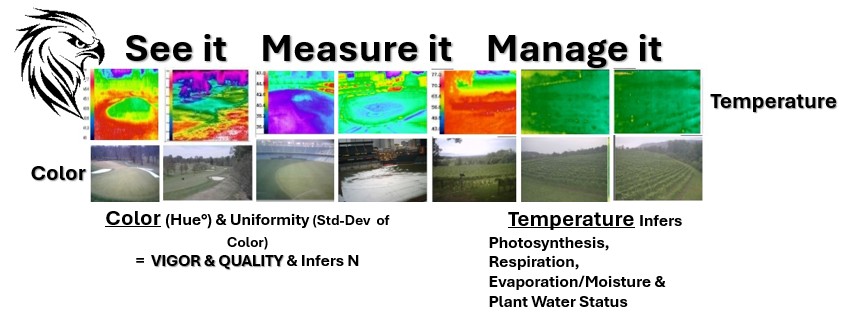

Hawk-Eye™ Systems are multi-purpose remote sensing platforms that are built to primarily collect image data that can be used to describe, in high temporal and spatial resolution, an area of interest. It is your near earth satellite-on-a-stick.
Hawk-Eye™ Systems are custom built to address your requirements.

Your Hawk-Eye™ is operated by you, when and where you need it, for real-time imaging and data acquisition.
The Hawk-Eye™ Remote Sensing System consists of:
- An aerial platforms consisting of small best-of-breed work class UAVs.
- An aerial observing platform/instrument deck mounted on a telescoping mast.
- A high-fidelity visual and mid-IR imaging subsystem mounted in/on the appropriate observing platform
- A micro meteorological sensor operated on the UAV for flight level temp/humidity/pressure/wind data.
- A navigation & control, and a processing and data visualization subsystem for real time collection, processing,
and geo-rectification of data/imagery.
- A data fusion and dissemination subsystem for immediate visualization and transmission of results via the internet.
Our Mobile/Truck Mounted Hawk-Eye™ System has:
Thermal/Visual/near-IR Cameras are encased in weather and dust resistant coverings and mounted into an integrated camera block. Camera block mounted on pan/tilt platform.
Telescoping mast with electric powered winch mates with standard trailer hitch receiver.

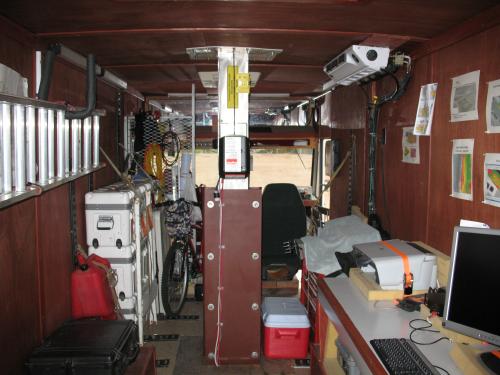

In truck cab Operator Station: Includes laptop computer containing software for controlling cameras and for real-time viewing of camera imagery, large file storage, post processing of imagery, and joy stick to control pan/tilt pointing of camera block.

Our Hawk-Eye™ 24/7 Imager:

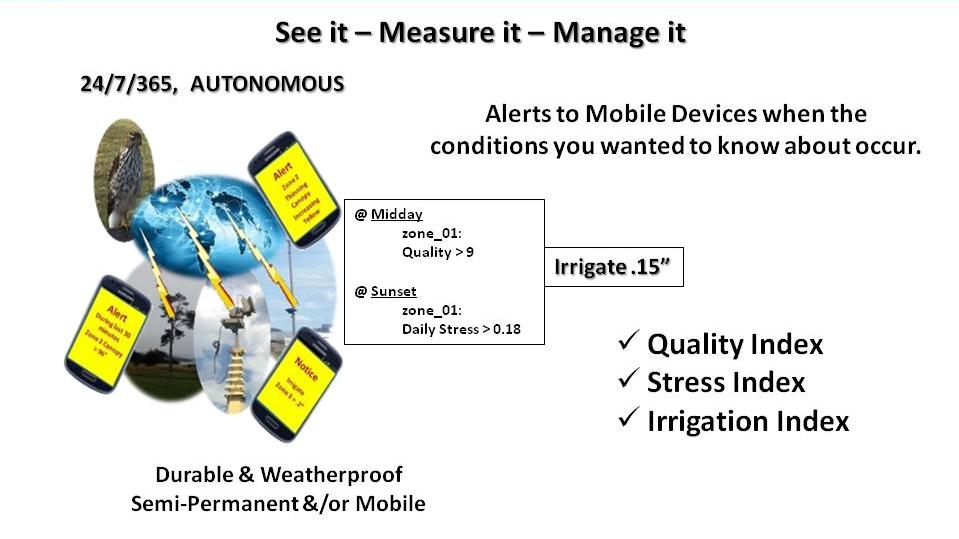

This version (Hawk-EyeTM all day/every day) has the same image quality characteristics as the “satellite-on-stick”. It can be set-up for 24/7 extractions of image data from the system to the web so that the data can be accessed anytime/anywhere via the Internet. It can also be accessed by wireless (802.11) link when a user is near the Hawk-Eye™ System set-up in the field. All of the Hawk-Eye™ data is archived so that the image data record can be examined when needed.
All Hawk-Eye™ Systems Come With Installation and Training:
Operator and maintenance training on delivery.
Routine tech support by phone and on-site support if needed.
Refresher and new operator training.
|
